Veins
| Stranded aluminium conductors type II according to IEC-60228
|
Insulation
| Polyvinyl chloride PVC
|
Insulation colors
| Yellow, green, red, blue
|
Coating
| Cold resistant PVC sheathing compound
|
Operating temperature
| - Fixed installations from -40°C to +70°C
- Suitable for mobile installations from -40°C to +70°C
|
Operating voltage
| 0.6/1 kV
|
Bending radius
| - Single-core cable without armour is 20D; multi-core cable without armour is 15D; where D is the outer diameter of the cable.
- Single-core cable with armour is 15D; multi-core cable with armour is 12D; where D is the outer diameter of the cable.
|

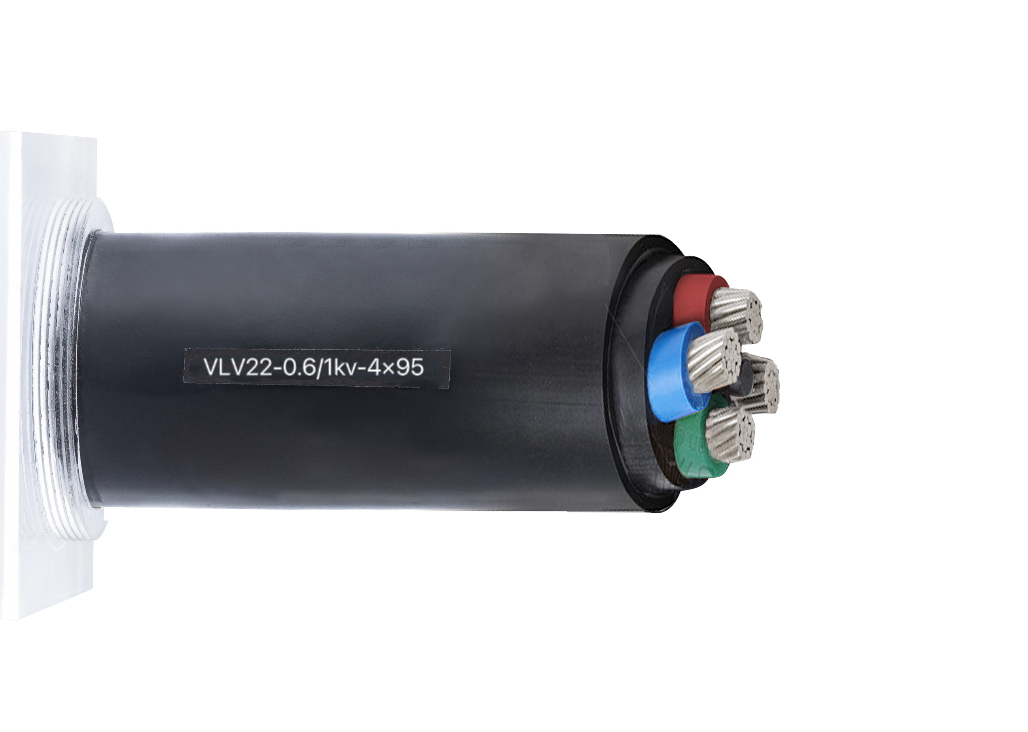

Application
| The cable has an armoured structure and is used for power transmission in various places such as transmission lines, industrial and mining enterprises, buildings, etc. It is especially suitable for complex environments such as buried laying, etc. The sheath material of this cable is made of cold-resistant sheath material, which has good weathering resistance and is able to maintain stable performance in harsh natural environments.
|
Technical parameters
| - Capacitance: Conductor/Inductance = 70 to 250 nF/km
- Conductor/Inductance = 110 to 410 nF/km
- Maximum conductor temperature 70°C
|
Packaging
| discs, reels
|
